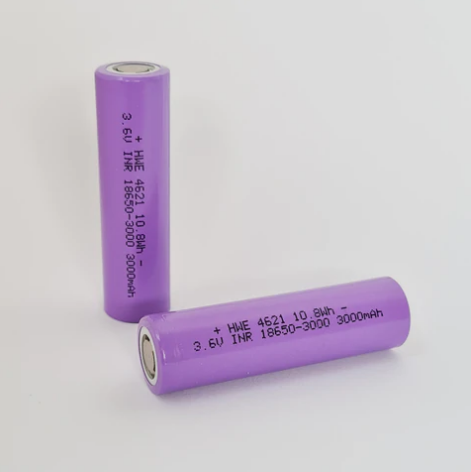

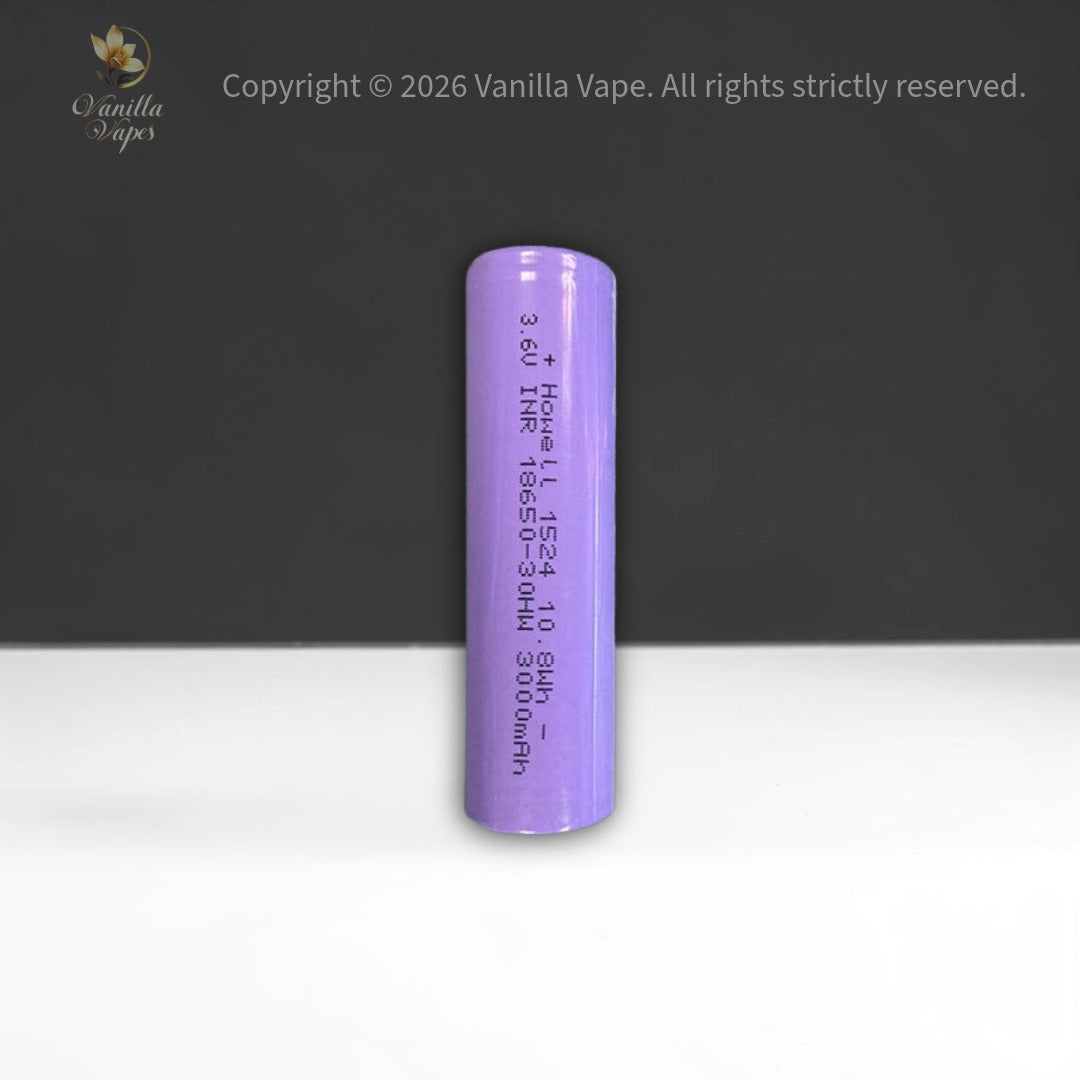

Howell INR | 18650 | 3000mAh
Product Specification
- Nominal 3000mAh
- Standard discharge（0.2C5A) after Standard charge Minimum 2900mAh
- Nominal Voltage 3.60V Mean Operation Voltage 3 Voltage at end of Discharge
- 2.50V Discharge Cut-off Voltage
- Charging Voltage 4.2±0.03V
- Energy ≤10.8Wh
- Internal Impedance ≤20mΩ Internal resistance measured at AC 1KHZ after 50% charge
- Standard charge
Constant Current 0.2C5A
Constant Voltage 4.2V
0.01 C5A cut-off 25℃ - Charge time : Approx 6.5h
- Standard discharge
Constant current 0.2C5A
end voltage 2.50V cut-off 25℃ - Fast charge
Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off 25℃ - Charge time : Approx 2.5h
- Maximum Continuous Discharge Current 5.0C5A
- Maximum instantaneous Discharge Current 10 C5A
- Operation Temperature
Range
Charge: 0~45℃
60±25%R.H. Discharge: -20~60℃ - Weight Approx: 50g
- Dimension
Height: 65.5 mm MAX
Diameter: 18.5mm M
